The creator of the original Paint Gun Washer, Herkules also offers the parts shops need to keep their paint gun washers working great. Parts are available on-line, and ship weekdays (holidays excluded) from Walled Lake, Michigan. Popular paint gun washer parts are found below; if a needed part not found on this page, contact Herkules Customer Service at 1-800-444-4351.
-
Section
CoAgent quickly and effectively separates used paint from cleaning water or cleaning solution for proper waste disposal. Partner with the Herkules R500, with Herkules Paint Gun Washers G511, G520 and G550, or use with other paint gun cleaners for efficient paint flocculation.
-
Section

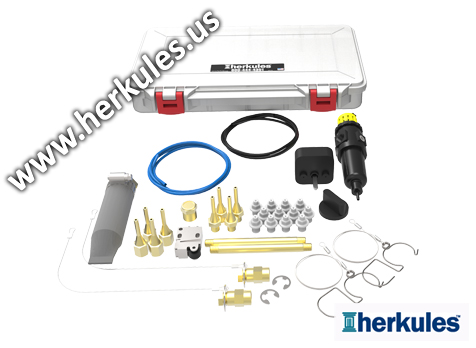

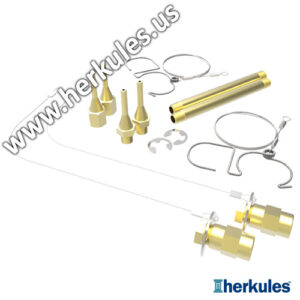

The Herkules Maintenance Kit (#15171) contains the most popular and commonly-used replacement
parts by our Paint Gun Washer users. This kit features the fifteen (15) of the most frequently
purchased components used to modify,repair or just basically tune-up Herkules Paint Gun Washers.This easy-to store pack keeps these parts ready for quick access, reducing both downtime and cost—
with a significant savings over purchasing and shipping parts individually.The kit provides these parts: 12509 (2) air cap assembly, 1002651 (2) e-rings, C9A (2) nipple 1/8 NPT x 4 ½ brass, 22GW (2) trigger lock assembly, M1C (1) limit valve, 54P1 (12) white fulljet nozzle, 53A (4) stem support male, 53B (4) stem support female, M230-002 (1) knob for mechanical timer,12491 (1) filter for pump inlet, 1001441 (1) muffler for 338 pump, 11345 (1) filter regulator, M5 (36”) Blue tube 5/32, M230-001A (1) mechanical timer without knob, and M5-black (36”) Black tube 5/32.
-
Section
Replacing a piston pump with a diaphragm pump is simplified with the 11981 kit. Paint gun washers currently using a piston pump are easily upgraded to our powerhouse 338 pump with this kit, which also includes a solvent intake filter, two nuts, two flat washers, two lock washers two nylon spacers, two steel tubes with flare nuts and an operating instructions decal for the washer lid.
-
Section
The 11972 kit from Herkules enables paint gun washers with the 10686 or 314 pump to be upgraded by installing the 338 pump. This kit includes not only the 338 pump, but also the inlet and outlet hose assemblies, fittings, connector, elbow and nylon tube needed to simplify installation.
-
Section

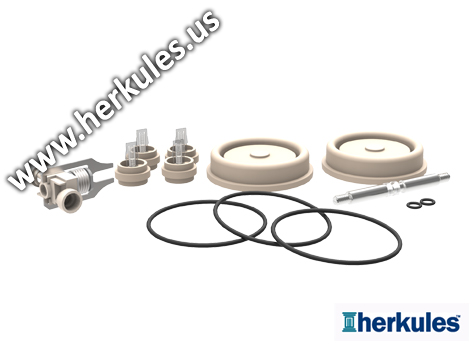

The 10792 kit provides fittings to refurbish the 10686 pump. The kit includes four check valves, two diaphragms and two large O-rings, two small O-rings and a slide valve assembly.
Another option for paint gun washers using the 10686 pump is to upgrade to a 338 pump; see the 11972 kit listing for more information.
-
Section

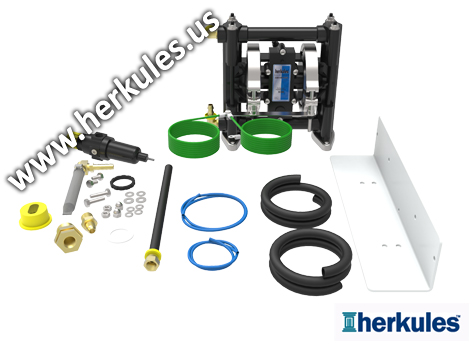

Also known as the O500 Pump Conversion Kit, the 12164 kit from Herkules enables paint gun washers that use the 318 pump to be retrofitted with the 338 Pump, which is included in the package.
Other fittings in the kit include the pump bracket and assembly, the filter/regulator, filter assembly, drain hose assembly, flare connector, hoses, washers, bolts and nuts, washers, plug and a bulkhead.
-
Section
The 318 replacement pump is available, and should be used for rinsing operations only, not to power washing operations.
We recommend that the user upgrade to the 338 pump for washing operations.
To upgrade to the 338 pump, purchase the #12164 – O500 Pump Conversion Kit. More information about the kit can be found in section 4 above.
Contact Herkules at 1-800-444-4351 for more information.
-
Section
The 338 diaphragm pump powers most of our current Herkules Paint Gun Washers. This powerful device can also be retro-fitted to many older Herkules paint gun washers; if only a replacement pump is needed, order this pump buy selecting “Add to Cart.”
If retrofitting the 338 pump into a unit that currently uses an older Herkules pump, please order the pump kit that contains not only the pump, but also the components needed for easy installation. For help determining the correct kit, scroll down to each kit and it’s explanation, or visit our Frequently Asked Questions page for detailed information.
-
Section
This powerful pump handles both solvent and waterborne paint and is used exclusively in the G507 Paint Gun Washer.
-
Section
The 338_KIT-01 is for rebuilding a 338 pump. The kit does NOT include a new 338 Pump but provides two diaphragms, eight O-rings, lubricant, and four each of the following: seals, balls, and ball guides, along with detailed directions on how to refurbish a current 338 Pump and extend its lifecycle.
-
Section
The 1001441 brass muffler is used on the 338 pump.
-
Section
This “dog bone” shaped manifold (part #1003560) is easily replaced on the popular Herkules 338 Pump, increasing the pump’s life cycle.
-
Section
The 22GW is the trigger lock assembly with e-clips used in most Herkules paint gun washers. This assembly includes the standard trigger lock assembly (#22BA) and an e-clip (#1002651).
-
Section
The 23K is a manifold adapter kit. This optional kit provides alternative positioning of gravity fed paint guns during cleaning.
-
Section

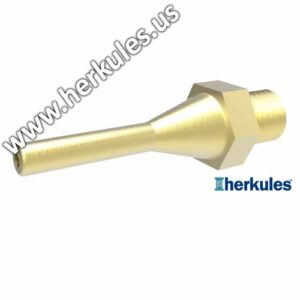

The male stem support (53A) is compatible with Herkules Paint Gun Washers.
-
Section
The 53B female stem support is compatible with Herkules paint gun washers.
-
Section
The C9A support nipple is 4-1/2″ tall, and supports 53B (Female stem support).
-
Section
The 54 is the 1/8″ brass nozzle for use on the paint gun washer’s spray manifold.
-
Section
The 54 is the 1/8″ plastic nozzle for use on the paint gun washer’s spray manifold.
-
Section
-
Section
The 12491 filter assembly for solvent paint gun washers includes the filter and a stainless steel clamp to simplify installation.
-
Section
-
Section
The 12509 air cap assembly includes the air cap, e-clip and stainless steel cable mount.
-
Section
-

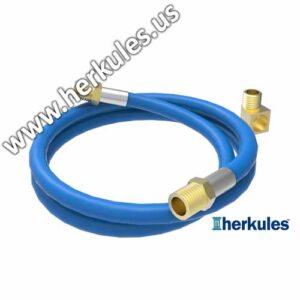

Section
-

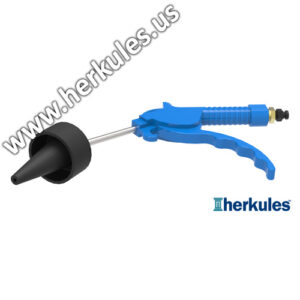

Section
-

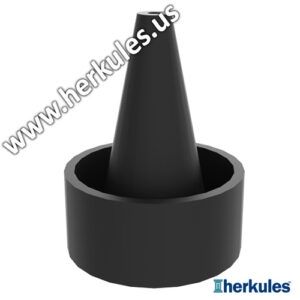

Section
-
Section
-
Section
-
Section

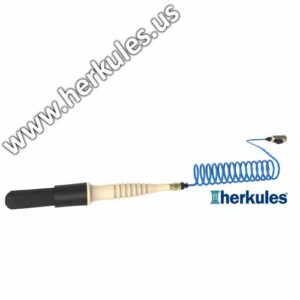

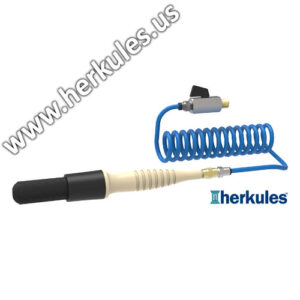

The 19481 brush assembly includes the brush, hose, fittings and valve for the G511 paint gun washer.
-
Section
The 11238 filter regulator is 1/4″ npt and set to 38 psi for use in the O500 (retired) paint gun washer.
-
Section
The 11345 filter regulator is 1/4″ npt and set to 75 psi, and is the new number for part T17M.
-
Section
-
Section

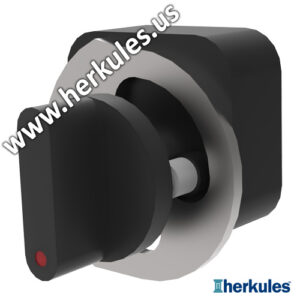

The 13596 timer assembly includes the mechanical timer (#1007592), timer cam (M230-003), timer knob (#M230-002) and hardware needed to replace the Herkules paint gun washer timer system.
-
Section

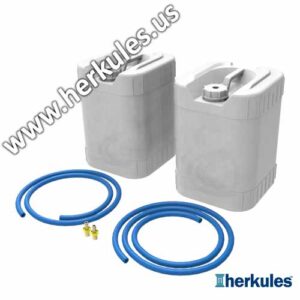

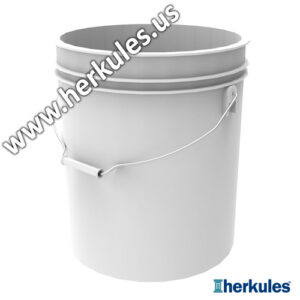

The 13939 five (5) gallon upgrade offers two larger containers and the hoses and fittings that easily integrate with the Herkules G507.
-
Section
-
Section

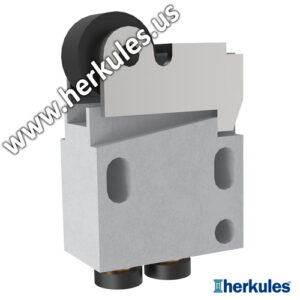

The M1C limit valve controls the follow of the compressed air that powers most Herkules paint gun washers.
-
Section

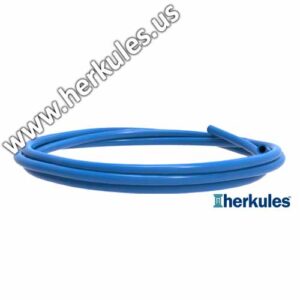

The 19482 blue 5/32″ hose is sold in a five (5) foot coil.
-
Section

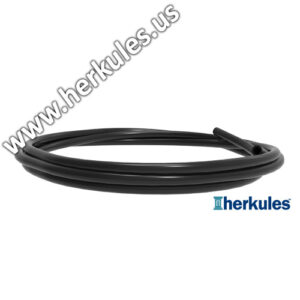

The 19483 black 5/32″ hose is sold in a five (5) foot coil.
-
Section
-
Section
The set of Inner Filter Bag for waterborne recycling (#13835) includes five bags in each package. This filter bag catches the waterborne paint waste so the paint can be disposed of properly. This filter’s mesh is 400 microns and can be re-used up to 25 filter processes.
The filtering ability of Herkules Filter Bags, coupled with their strength and durability, enable swift and thorough cleaning and recycling. The two bag system works in tandem to help ensure quick, yet high quality, filtration. These filters can be used with Herkules Paint Gun Washers G511, G520, G550, or with other brand name paint gun washers.
-
Section
The Outer Filter Bags (#13836) for waterborne recycling include five bags in each package. This filter bag catches the residual paint waste left in the cleaning solution after going through the inner filter bag; it’s mesh is 25 microns and the bag can be re-used for more than 25 filter processes.
The filtering ability of Herkules Filter Bags, coupled with their strength and durability, enable swift and thorough cleaning and recycling. The two bag system works in tandem to help ensure quick, yet high quality, filtration. These filters can be used with Herkules Paint Gun Washers G511, G520, G550, or with other brand name paint gun washers.
-
Section
The paint cleaner in an aerosol can, Sparkle Clean is formulated for use with either Solvent or Waterborne paints. Use Sparkle Clean to spot clean spray guns –and other paint equipment –throughout the day. Each 15 ounce aerosol can has two stream options: wide or narrow– enabling users to target a wide area, or focus on narrow chamber, with the flip of the lid.
Marked for individual sales for retailers as SC01, Sparkle Clean is only available by the 6-can case from Herkules (SC06).
This product must be shipped UPS Ground.
WARNING: This product cannot be purchased for use in the State of California, due to its Prop 65 regulations.
-
Section
Containing the same highly effective Sparkle Clean formula, but equipped with a special valve for easy attachment to the Herkules G45 FastTrack Paint Gun Washer, BLAST effectively cleans both waterborne and solvent paint — 20 to 30 spray gun cleanings in each 13 ounce aerosol can. Six cans in a case, like all other Herkules products, it is proudly made in the USA.
This product can only be shipped UPS Ground.
WARNING: This product cannot be purchased for use in the State of California, due to its Prop 65 regulations.
-
Section
The 318 pump is used for clean rinsing operations. This is not to be used for power washing operations. The 13430 pump assembly comes with the 318 rinse pump and all the hoses attached.
-
Section
The Herkules Retrofit Pump Kit (#21155) contains all seventeen (17) of the components required to install a bypass into the G550 Paint Gun Washer. Allowing for an improvement of performance for the Gun Washer Unit, this kit allows you to solve any issues/upgrade your unit with ease.
The kit provides these parts: 1007592 (1) timer mechanical w/o knob, M230-003 (1) cam – timer 11 GA. mild steel, M230-004 (2) spacer .3125 OD x .115 ID x .25 NYLN, M230-005 (1) spacer .50 OD x .257 ID x .125 NYLN, M230-006 (2) screw PHSM phil #4 X 5/8 Z, M230-002 (1) knob for mechanical timer, 002-161 (1) washer flat .5625 OD X .252 ID X .045, M230-007 (1) spacer 1/2 OD .257 ID Nylon, 1002414 (1) sticker timer on/off for gun washer, M1C (1) valve limit bottom ports, 002-171 screw BHSC 8-32 X 1 black, 002-172 (2) nut nylock 8-32 Z, 1000852 (1) tee PTC 5/32, 810-109-4 (6) tie cable 4 inch black, 19482 (1) hose 5/32″ blue 5 foot coil, 1003058 (1) owners manual for G520, 1012280 (1) installation instructions for 21155.
-
Section
The Herkules Retrofit Pump Kit (#21197) contains all seventeen (17) of the components required to install a bypass into the G550 Paint Gun Washer. Allowing for an improvement of performance for the Gun Washer Unit, this kit allows you to solve any issues/upgrade your unit with ease.
The kit provides these parts: 1007592 (1) timer mechanical w/o knob, M230-003 (1) cam – timer 11 GA. mild steel, M230-004 (2) spacer .3125 OD x .115 ID x .25 NYLN, M230-005 (1) spacer .50 OD x .257 ID x .125 NYLN, M230-006 (2) screw PHSM phil #4 X 5/8 Z, M230-002 (1) knob for mechanical timer, 002-161 (1) washer flat .5625 OD X .252 ID X .045, M230-007 (1) spacer 1/2 OD .257 ID Nylon, 1002414 (1) sticker timer on/off for gun washer, M1C (1) valve limit bottom ports, 002-171 screw BHSC 8-32 X 1 black, 002-172 (2) nut nylock 8-32 Z, 1000852 (1) tee PTC 5/32, 810-109-4 (6) tie cable 4 inch black, 19482 (1) hose 5/32″ blue 5 foot coil, 1003108 (1) owners manual for G550, 1012280 (1) installation instructions for 21197.
-
Section
This 338 diaphragm pump powers the Herkules G520 Paint Gun Washer. The 21349 pump assembly comes with all the hoses for the solvent side of the paint gun washer.
-
Section
This 338 diaphragm pump powers the Herkules water side of the G520 Paint Gun Washer. The 21350 pump assembly comes with all the hoses for use with the pressure wash and manual brush.
-
Section
The 11243 is a clean water intake filter with a straight fitting. This is attached to the 338 pump hose on the water side. Used on G100 and G520.
-
Section
The 13053 Filter is a recirculating solvent filter with an elbow fitting for the Paint Gun Washers G510, G520, and G550.
-
Section
The 13901 is a simple steel platform that allows operators to place their paint guns while manually cleaning them using the brush assembly. The platform is perforated to allow all liquid to drain into the tub of the gunwasher.
-
Section
The 21142 is a water filter intake assembly for the shroud clean rinse cycle on the G520. It includes the screen filter, hose, and fitting.
-
Section

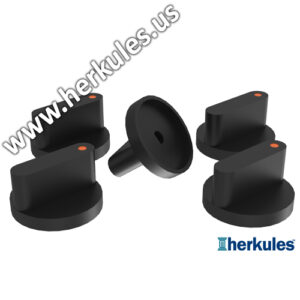

The 21254 Timer knob replacement kit comes with five lightweight plastic timer knobs that easily attach to the gun washer timer assembly.
-
Section

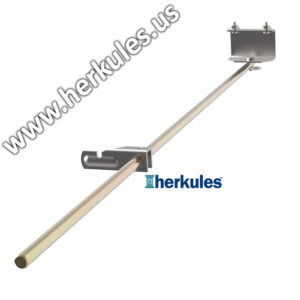

The 21351 kit is the full actuator rod assembly. The actuator rod is used to ensure the Herkules G520 paint gun washer lid is fully closed in order for the gunwasher to clean automatically. Once the lid is lifted, the actuator rod will disengage and stop the gunwasher unit from operating. To resume the cleaning process, simply close the lid.
-
Section

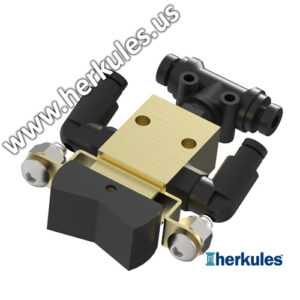

The 21356 is used on the G520 water side known as the rinse/agitator switch. The 21356 kit is the toggle valve with all the fittings attached.
-
Section

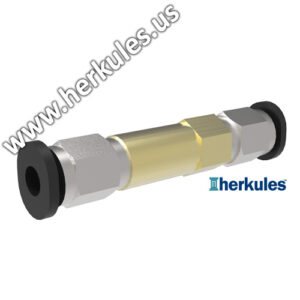

This is a one way check valve for agitator air on the G520.
-
Section

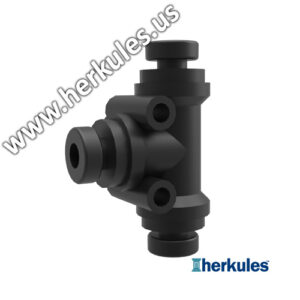

1000852 is a tee ptc 5/32. Two of these tees are used on the G520 to divert washer water from the pump to the pressure washer and brush fixtures in the shroud.
-
Section

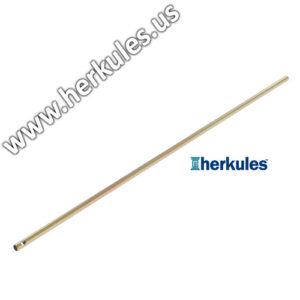

1002572 is just the rod without the assembly. The actuator rod is used to ensure the Herkules G520 paint gun washer lid is fully closed in order for the gunwasher to clean automatically. Once the lid is lifted, the actuator rod will disengage and stop the gunwasher unit from operating. To resume the cleaning process, simply close the lid.
-
Section

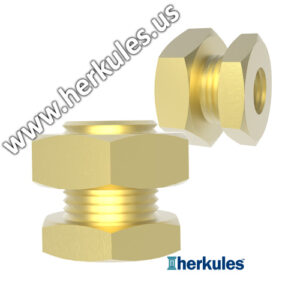

The 1002643 part is a brass bulkhead 3/4-16uns x 1/4 NPT W/nut. Used on G202, G205, G210, G375, G507, G511, G550.
-
Section

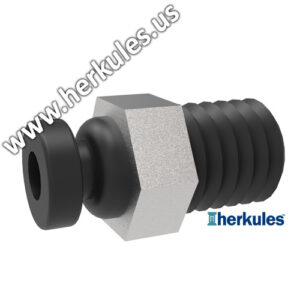

The T25 is a G520 air intake fitting for the 338 water pump. This is also used for the water side 3 shroud intakes (clean rinse, pressure wash, and brush).
-
Section

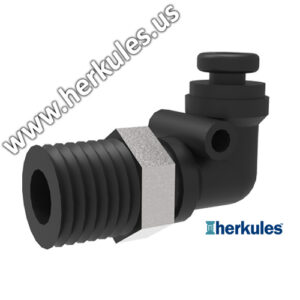

Connector for the M5 hose (works on the blue, black, and neutral M5). Can be found on most gun washers.
